Controllers
ACTIA Electronic Control Units (ECU)
ACTIA electronic control units are engineered for exceptional reliability in harsh operating environments. Solutions such as the Gateway and I/O Extender Controller, the ACTIA 3-Axis Stability System, and the Pump Controller demonstrate ACTIA’s expertise in delivering robust, mission-critical control systems.
Designed to withstand demanding conditions, ACTIA ECUs provide dependable performance, flexible integration, and long-term durability across a wide range of vehicle and industrial applications.
Expand Any Electrical Architecture with Minimal Engineering Time and Cost
Versatile, cost-effective, and ready for seamless integration

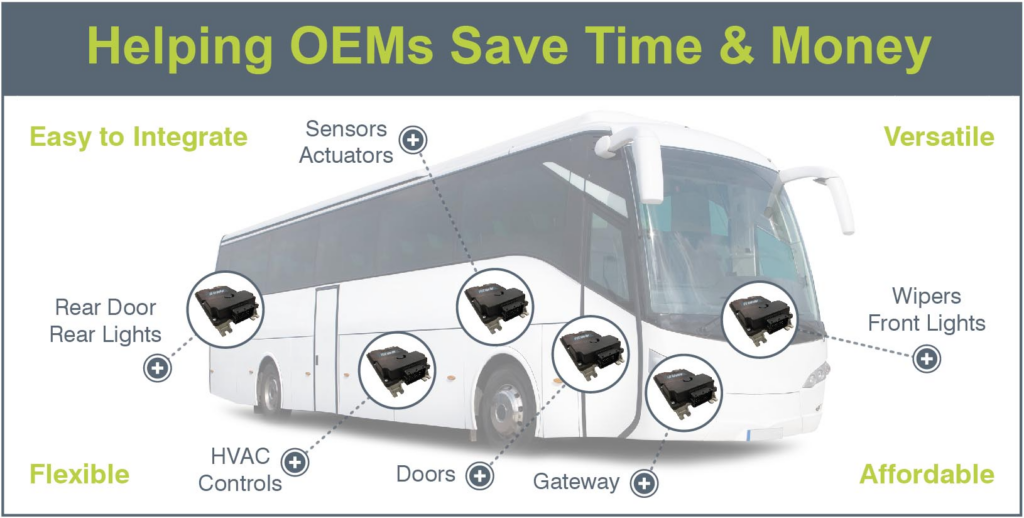

The Gateway I/O Extender module enables optimization of any electrical architecture by adding I/O expansion and or gateway functionality without requiring changes to the existing system design.
This designed-to-cost solution allows system architects and OEMs to extend functionality quickly and efficiently while preserving legacy investments.
Key Capabilities and Benefits:
-
Add additional I/Os without major engineering effort
-
Seamlessly support legacy communication protocols or introduce new protocols into existing applications
-
Significantly reduce development time and accelerate time-to-market using simple development tools
-
Respond quickly to customer service changes and vehicle variants
-
Design, extend, or optimize new and existing electrical architectures
The G-I/O module reinforces ACTIA’s commitment to flexible, scalable solutions that reduce complexity while increasing system capability.
Expand Any Electrical Architecture with Minimal Engineering Time and Cost
Versatile, cost-effective, and ready for integration

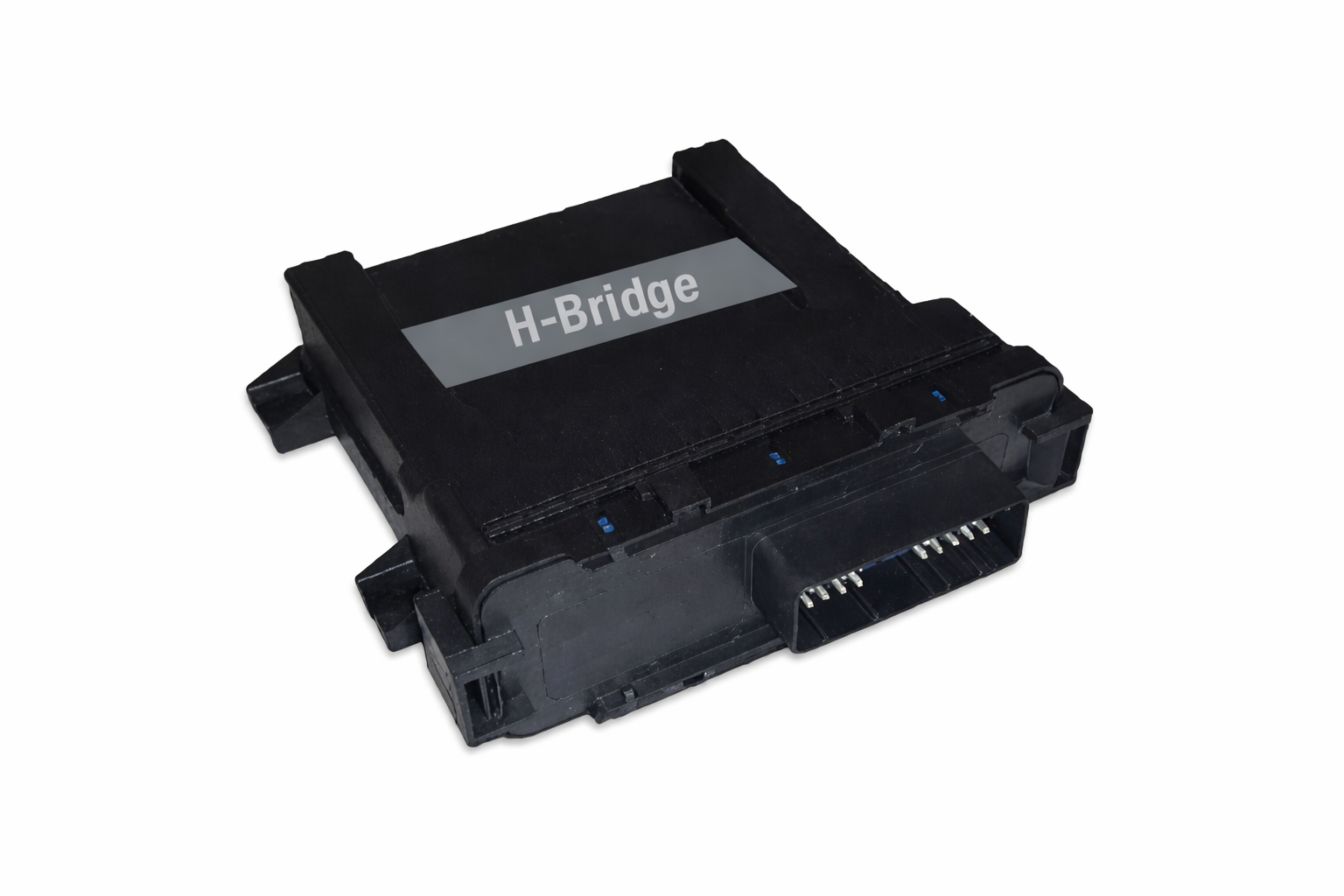

The H-Bridge Controller is a designed-to-cost module that enables efficient expansion and control within existing electrical architectures, without requiring major engineering changes.
Key Capabilities and Benefits:
-
Bi-directional DC motor control with up to 20 A continuous power per output, 40 A total
-
Available in dual-output (2-channel) or optional quad-output (4-channel) configurations
-
Integrated failsafe protection with current-sensing capabilities configurable independently for each direction
-
Application software customizable to meet specific vehicle or vessel requirements
-
Reduced development and integration time, enabling faster time-to-market and lower overall system cost
This flexible controller provides a reliable, scalable solution for applications requiring robust motor control with minimal engineering overhead.

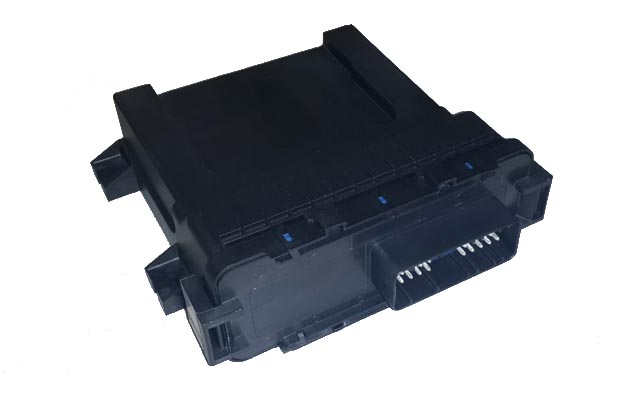

The ACTIA Stability Controller is an advanced module designed to detect positional changes across all three axes using integrated three-axis accelerometers and gyroscopes. Sensor data is processed through proprietary algorithms that filter out unwanted variables, ensuring a high level of accuracy and reliability.
The module is capable of detecting angular changes as small as 0.25 degrees, enabling precise monitoring of vehicle or vessel dynamics. Integrated CAN bus communication allows stability data to be transmitted for further processing, visualization, or continuous monitoring on the vehicle or vessel data bus.
This solution supports enhanced stability control, situational awareness, and system integration across a wide range of mobile and marine applications.
