ACTIA Human-Machine Interface (HMI) Solutions

ACTIA provides a complete line of human-machine interface solutions that eliminate the need to rely on inaccurate and outdated mechanical and electrical gauges. By using analog and digital technology, ACTIA’s instruments provide more functionality, flexibility, and ease of installation than any other existing solutions on the market.

ACTIA’s instrumentation products are designed to operate with J1939, Smartcraft, J1708, and NMEA 2000 system protocols. Whether it is a display, cluster, gauge panel, warning bank, or Podium, ACTIA has the capabilities to fully customize the instrumentation package to the customers’ specification. Our instrumentation products can be used for military, commercial, specialty, marine, and off-highway vehicles.

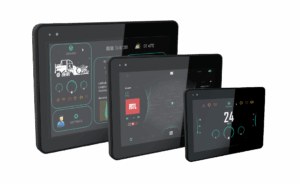

Displays
ACTIA Displays
  • High performance HMI with 4.3" or 7" WVGA TFT screen.
  • Dedicated graphics/video processor allowing 4 channel real time video display.
  • Sunlight readable luminosity
  • Multiple interface options and protocols with the vehicle/vessel or machine.
  • Optional capacitive or resistive touch screens
  • ACTI-GRAF ready
More Info

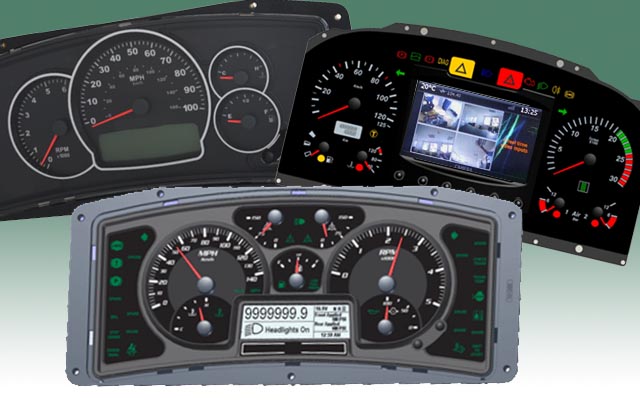

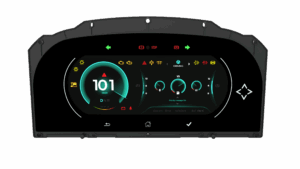

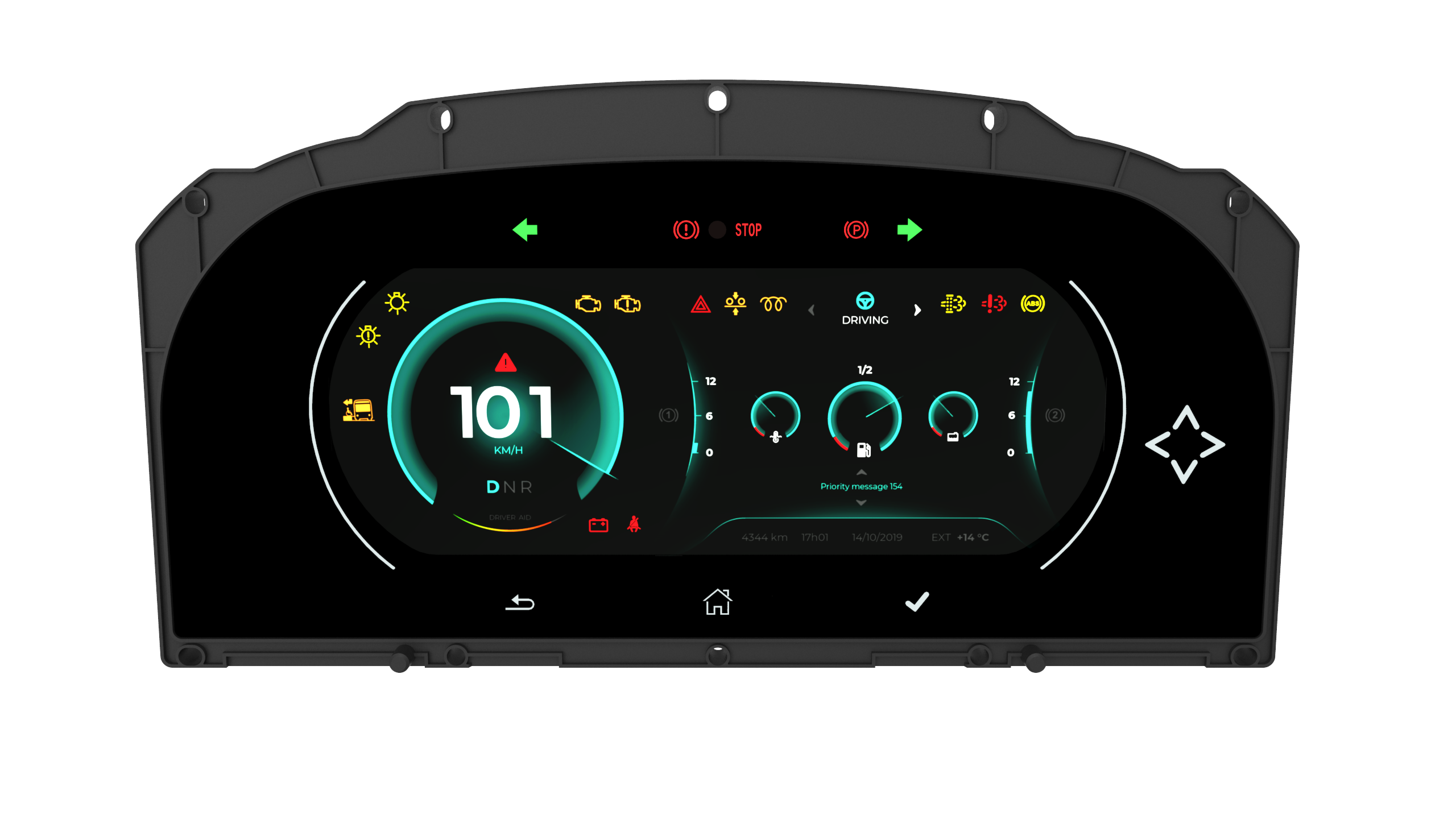

ACTIA Clusters
Clusters
ACTIA provides a complete line of multiplexed electronic instrumentation products that eliminate the need to rely on inaccurate and outdated mechanical and electrical gauges. By using analog and digital technology, ACTIA's instruments provide more functionality, flexibility, and ease of installation than any other existing solutions on the market.

ACTIA's instrumentation products are designed to operate with J1939, Smartcraft, J1708, and NMEA 2000 system protocols. Whether it is a cluster, gauge panel, warning bank, or Podium ACTIA has the capabilities to fully customize the instrumentation package to the customers' specification. Our instrumentation products can be used for military, commercial, specialty, marine, and off-highway vehicles.
  • High performance MMI with 7" WVGA TFT screen.
  • Dedicated graphics/video processor allowing 4 channel real time video display.
  • Up to 6 gauges.
  • Up to 26 warning lights with 11 bi-colour LEDs.
  • Optional Eco-Driving bar graph, Driver Aid.
  • Integrated Master capability as part of the ACTI-MUX system.
  • Powerful dual core 32 bit main CPU for vehicle application s/w and network management.
  • Supported by ACTI-GRAF, integrated development tool for PLC (IEC 61131-3 language) and GUI application s/w.
  • Compliant with SAE J1939, KWP 2000, ODX standards.
  • Highly customizable platform (dial face, number of gauges...).
  • Optional scratch-resistant/anti-glare mineral lens.
  • Pin to Pin and mechanically compatible with MultIC1 cluster.
More Info
ACTIA Gauges
Gauges
ACTIA offers OEMs a full line of multiplexed electronic gauges. Our gauges come in 117mm, 85mm, and 52mm sizes and are fully customizable to the customer's desire. Among the things that can be customized are bezel color, dial face, LCD messages and backlighting, sweep angles, and pointers. Electronic gauges can be stand-alone or integrated in a panel and can be easily programmed for any application and vehicle configuration.
  • Master – Slave Configuration reduces cabling & increases system robustness
  • Master gauge manages the LCD display, multiple gauges, LED indicators, diagnostics and control functions.
  • Custom bezel colors optional
  • Sunlight readable LCD and a choice of 4 backlight colors
  • 2nd line for priority messages and user selectable messages.
  • Diagnostics: system self-test, analog/binary input status, . fault codes: engine/transmission/ABS/etc.
  • SAE 1455 compliant
More Info
Integrated Dash
Integrated Dash

Modular & Ergonomic dashboard meeting European regulations (EBSF & VDV standards).

  • Ergonomically designed to accommodate different drivers.
  • Highly customizable.
  • Free space for additional fleet operator terminal (MADT).
  • Steering wheel with 8 customizable switches (option).
  • Choice of coloured trim parts (generic or specific).
  • Premium design/Automotive grade/Look and feel.
  • Instrumentation with high level of MMI capabilities (MultICS / MultIC2 / future MultICX clusters).
  • Optional haptic touch screen switches and Heads Up Display.
  • Integrated and backlighted controls.
  • Dedicated configuration tool to easily adapt it to customer's requirements.
More Info

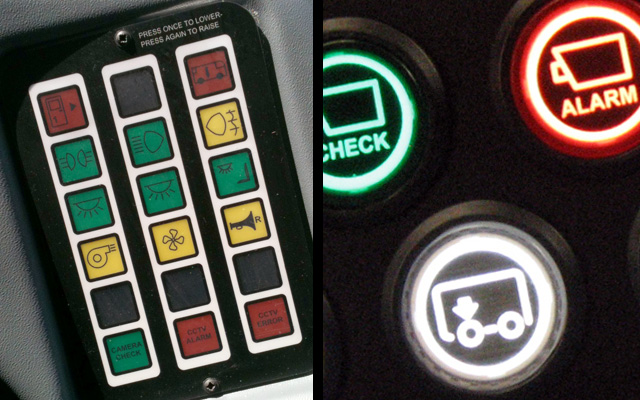

Switch Packs
Switch Packs
  • Flexible solution using new rocker switch technology directly attached to the PCB.
  • Modular design:
  • - Up to 6 momentary or stable, 2- or 3-position with backlight functionality,
    - Compatible with APEM KS or CSM switch series,
    - Switch functions customised in s/w.
  • Master variant with integrated CAN & LIN interfaces (SP6M).
  • Slave variant with integrated LIN interface (SP6E).
More Info
driverAid
Driver Aid
  • Assists the driver in operating the vehicle more efficiently.
  • Warns the driver of harsh braking, acceleration, cornering, excessive idling, overspeed and overall fuel economy. Drivers learn over time how to improve their driving patterns and can monitor their progress in real-time.
  • Increased safety.

From the office, the fleet manager can assess and promote driver improvement through back-office reporting (when combined with a telematics solution).

More Info
